The Anatomy of a CNC Machine & How This Influences Output Quality
Introduction to CNC Machining
CNC machining, short for Computer Numerical Control machining, refers to a method of manufacturing where machines are guided by programmed instructions. Using a subtractive process, complex digital designs are translated into precise physical parts. It often starts with a block of material and then excess is removed to create the final shape. This contrasts with additive methods like 3D printing, which build parts layer by layer.
Engineers often opt for CNC machining when they need to produce highly precise parts with tight tolerances. It’s used to create everything from medical devices to aerospace components, making it an essential manufacturing technology for a variety of industries.
Knowing how a CNC machine works can help you figure out which parameters to specify so your designs come out exactly to spec. In this article, we’ll go over the key features of CNC machines, look at how they affect the quality of what’s produced, and share some tips to help you get the best results for your next project.

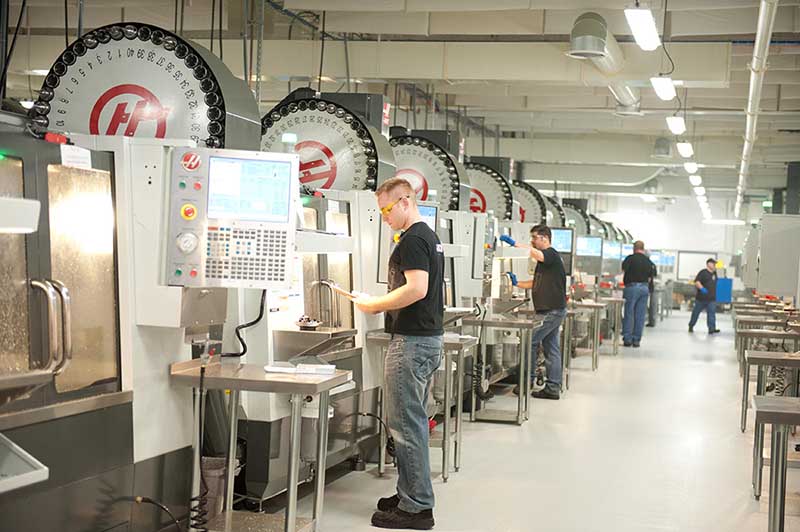

Types of CNC Machines
There are several types of CNC machines, each designed for specific tasks. Here are the most common ones:
These machines use rotating cutting tools to remove material and create shapes. They’re great for complex geometries and are often used for metal and plastic parts. Standard 3-axis milling machines move tools along the X, Y, and Z axes, making them suitable for straightforward geometries. Advanced 5-axis machines can move tools or parts along five different axes, making them perfect for product innovation and intricate, high-precision parts.
Lathes rotate the workpiece while a cutting tool shapes it. This process, known as CNC turning, is great for cylindrical parts like shafts, bushings, and threaded components. Advanced models often include additional capabilities for more versatility.
CNC Routers
Routers are commonly used for cutting softer materials like wood, plastics, and composites. They’re often seen in industries like furniture manufacturing or prototyping.
Each type of machine has its own distinct strengths, and understanding which one fits your project’s needs is essential for achieving the best results.
Key Features of a CNC Machine
CNC machines are made up of several components that work together to deliver precise results. Here are the key features to understand, with a focus on their functions and how they influence output quality:
1, Universal CNC Features
These are the must-haves—core components that every CNC machine needs to get the job done.
Machine Bed and Frame
The machine bed provides a stable base that supports all other components of the CNC machine. The frame is designed to absorb vibrations during operation, which you need to maintain precision.
Impact on output quality: A stable frame reduces chatter so you get high dimensional accuracy in the finished part.
Machine Control Unit (MCU)
The MCU is the heart of the CNC machine, processing programmed instructions and converting them into the right movements of the cutting tools. It coordinates and synchronises the machine's motors and drives.
Impact on output quality: A high-performance MCU can execute complex designs accurately and consistently.
Controller and Software
The controller is like the machine's brain, using software to interpret design files and guide the tools.
Impact on output quality: High-quality software can keep your project up to spec with fine-tuned machining and tight tolerances.
Motors and Drives
Motors and drives are responsible for powering and controlling the motion of the CNC machine's components. When these are working correctly, you can expect smooth, precise movements along multiple axes.
Impact on output quality: The fewer vibrations, the cleaner the cuts and the better the surface finishes.
2, Shared CNC Features
These features aren’t universal but are common across many CNC machines, depending on the type of work they’re built for.
Feedback System
The feedback system checks the performance of the CNC machine and fixes any deviations from the programmed parameters.
Impact on output quality: Helps with part repeatability and detects issues early, preventing potentially expensive mistakes.
Coolant System
The coolant system is used to prevent overheating of the cutting tools and workpiece. It also reduces friction and helps flush away chips.
Impact on output quality: Extends tool life and improves surface finishes.
Display Unit and Control Panel
The display unit shows real-time data on the machining process, while the control panel allows operators to adjust settings and troubleshoot issues.
Impact on output quality: Helps the operators spot and resolve issues quickly, improving process reliability.
3, Milling-Specific Features
Because milling machines remove large amounts of material, systems like chip management and high-speed spindles are critical for keeping the process smooth and efficient.
Spindle and Cutting Tools
The spindle rotates at high speeds to drive the cutting tools, which remove material from the workpiece. Spindle speed plays a critical role in determining material removal rates and surface quality, as higher speeds often produce smoother finishes. The choice of cutting tools and spindle settings depends on the material and design.
Impact on output quality: Consistent speeds and the right tooling reduce imperfections and enhance surface quality.
Chip Management
This system removes debris (also called "chips") produced during the machining process. These chips are a byproduct of cutting, shaping, or drilling materials, and they can pile up quickly.
Impact on output quality: Prevents defects caused by chip interference and keeps tools from clogging.
4, Lathe-Specific Features
Lathes are all about rotating parts, so secure workholdings and hands-free operation are key.
Workholding
Workholding devices—like clamps, vices, or fixtures—may seem basic, but they are essential. A part that isn’t securely held in place can shake, vibrate or misalign, leading to serious issues.
Impact on output quality: Prevents movement, for higher precision and proper alignment during machining.
Footswitch
The footswitch or pedal allows for hands-free operation of specific machine functions, such as starting or stopping the spindle. This is useful when the operators may need their hands to position materials or tools.
Impact on output quality: Makes life easier for the operator and improves the precision of your part.
5, Router-Specific Features
Vacuum Tables
Routers often require vacuum tables to hold lightweight or flexible materials in place. These tables use suction to keep the workpiece stable during cutting.
Impact on output quality: Outputs even, consistent cutting for softer materials like wood or plastic.
Critical CNC Machine Components and How They Affect Quality
|
Feature |
Use |
Impact on Output |
Machine |
|
Machine Bed and Frame |
Keeps everything stable and absorbs vibrations for precision. |
Reduces chatter and ensures dimensional accuracy. |
Universal |
|
Machine Control Unit (MCU) |
Processes instructions and moves tools exactly as needed. |
Executes complex designs accurately and consistently. |
Universal |
|
Controller and Software |
Reads your designs and turns them into smooth tool movements. |
Ensures tight tolerances and optimised toolpaths. |
Universal |
|
Motors and Drives |
Powers motion and keeps movements steady and accurate. |
Reduces vibration for cleaner cuts and improved finishes. |
Universal |
|
Feedback System |
Checks performance and makes sure everything stays on track. |
Maintains repeatability and prevents costly mistakes. |
Universal |
|
Coolant System |
Keeps tools cool and reduces friction for a smoother finish. |
Extends tool life and improves surface finishes. |
Shared |
|
Display Unit and Control Panel |
Shows what’s happening in real time and lets you adjust settings. |
Enables quick issue resolution and reliability. |
Shared |
|
Spindle and Cutting Tools |
Rotates tools to cut or shape materials precisely. |
Reduces imperfections and improves surface quality. |
Milling |
|
Chip Management |
Clears chips and debris to keep the process running cleanly. |
Prevents defects and keeps tools from clogging. |
Milling |
|
Workholding |
Holds the part steady so it doesn’t move during machining. |
Ensures proper alignment and higher precision. |
Lathe |
|
Footswitch or Pedal |
Lets you control functions hands-free, like starting the spindle. |
Enhances efficiency and precision during machining. |
Lathe |
|
Vacuum Tables |
Holds lightweight materials in place with suction. |
Ensures consistent cutting for softer materials. |
Router |
Producing Premium Parts with Quality Equipment
Better machines mean better results—it’s really that simple. The quality of CNC equipment directly affects what’s possible, from intricate geometries to impeccable finishes.
- 5-axis CNC machines: For those tricky designs with complex geometries, 5-axis machines are a game-changer. They reduce setups, ensure tight tolerances, and handle parts like turbine blades or medical implants with ease.
- Precision milling machines: Need strength and precision? High-performance milling machines deliver the tolerances needed for aerospace, automotive, and other demanding industries.
- High-speed lathes: Perfect for creating smooth, cylindrical parts like shafts or bushings. And when it comes to threading, these lathes hit the mark every time.
- Surface finishing options: From bead blasting to anodising, advanced finishing tools ensure parts not only function flawlessly but also look fantastic—because details matter.
- Coolant-equipped machines: For heat-sensitive materials like titanium, machines with efficient cooling systems keep the process steady, extend tool life, and improve part quality.
Tips For Getting the Best Results From CNC Machining
- Getting the most out of CNC machining starts with understanding how to align the process with your project’s needs.
- Match the machine to your part’s geometry: Highly complex shapes? A 5-axis CNC machine might be the answer. But for most designs, high-speed milling will get the job done.
- Choose materials wisely: The material you select influences the type of CNC machine and features needed. For example, dense metals like stainless steel may require advanced tooling to ensure precision, while softer plastics might be machined with standard setups.
- Consider surface finish needs: If your design requires a polished or textured finish, you can specify these details when requesting a quote. At Protolabs, you can choose from options like chromate conversion or anodising to meet both functional and aesthetic requirements.
- Specify tolerances appropriately: Overly tight tolerances can drive up costs unnecessarily. Be precise about your requirements to balance quality and efficiency.
- Communicate your specs: Share as much detail as possible about your project to make sure your parts meet your expectations.
When it comes to CNC machining, the right equipment lets you dream big and build even bigger. At Protolabs, we’ve got the tools to bring your designs to life with unmatched precision and speed.
Where to Learn More About CNC Machining
If you want to dive deeper into CNC machining, check out Protolabs’ resources for engineers. From material selection guides to tips on designing for manufacturability, we’ve got you covered. Our team is always ready to help you optimise your designs and bring them to life.
FAQs About CNC Machining and Their Features
What is the most important part of a CNC machine for high-quality manufacturing?
The controller and spindle are key for precision, but all components need to work together for the best results.
Why should I choose a 5-axis machine for complex parts?
A 5-axis machine can handle intricate geometries and reduce the need for multiple setups, saving time and improving accuracy.
What’s the difference between CNC turning and milling?
CNC turning involves rotating the workpiece while the cutting tool remains stationary, making it ideal for cylindrical parts. CNC milling moves the cutting tool to shape a stationary workpiece, allowing for more complex geometries.
How does the coolant system affect output quality?
Coolant prevents overheating and tool wear, leading to smoother finishes and longer-lasting tools.
Can CNC machines handle all types of materials?
Most CNC machines can handle a wide range of materials, from metals like aluminium and steel to plastics and composites.
